Detritus Defender ™
Denali Energy Services, powered by Black Diamond, presents the Detritus Defender™ — a patented, high-pressure surface filtration system engineered to elevate mud quality and eliminate the operational risks associated with conventional drill pipe filters. Integrated directly into the ground mud-line plumbing between the mud pumps and substructure, the system gives operators complete command over the filtration process from surface, removing the hazards of rig floor and fingerboard screen handling entirely.
With over 8 million hours of successful circulation logged, the Detritus Defender™ delivers proven, dependable performance across real-world drilling operations. Its skid-mounted design installs in under five minutes with no impact on rig time, while a dedicated pressure sensor provides realtime filter fill rate monitoring for efficient maintenance scheduling. Rated to 7,500 psi with a maximum flow rate of 1,400 gpm, the system delivers superior particle removal without compromising hydraulics — protecting downstream surface assets and prolonging equipment lifespan operation after operation.
Features and Benefits
Effortless Filter Replacement:
Completed in <5 mins, seamlessly integrates into standard rig operations with no
impact on rig time.
Realtime Monitoring:
Dedicated pressure sensor ensures accurate filter fill rate reporting for efficient cleaning and replacement scheduling.
Improved Safety:
Eliminate risks associated with rig floor and fingerboard handling of drill pipe
screens. Reduce risk of equipment malfunctions or failures, enhancing overall
safety on the drilling site.
High Pressure Filtration:
Superior particle removal capabilities even at high flow rates.
Prolonged Equipment Lifespan:
Removing drill pipe filters diminishes wear on connections, prolonging the lifespan of equipment.
Optimal Filter Performance:
Screen design maximizes filtration performance
while minimizing pressure drop.
Surface Asset Protection:
Downstream surface connections are screened
from debris that would cause damage when
employing traditional drill pipe filters.
Effortless Integration:
Precision-mounted on a dedicated skid allows
for straightforward installation with
simplified rig handling.
Solids Control Performance Tracking:
Basic filtrate analysis allows valuable insight into
effectiveness of rig solids control.
Demonstrated Reliability:
Over 8 million hours of successful circulation, underscoring
the Detritus DefenderTM’s consistent and dependable functionality in real-world drilling operations.
Optimized Performance:
Detritus Defender™ mitigates the impacts of drill pipe filter misapplication including:
-
Incorrect placement
-
Leakage
-
False make-ups
-
Omission
-
Connection Damage

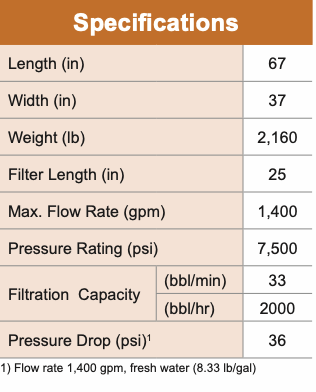

Specifications
